ENABLING ADVANCED CAPABILITIES

The most demanding defense and aerospace applications require the most robust and capable navigation solutions. VectorNav’s Tactical Series is designed to provide unprecedented modularity with support for a range of external inertial and positioning technologies. Complete your objective and gain the competitive edge over emerging Navigation Warfare (NAVWAR) threats and contested environments with VectorNav.

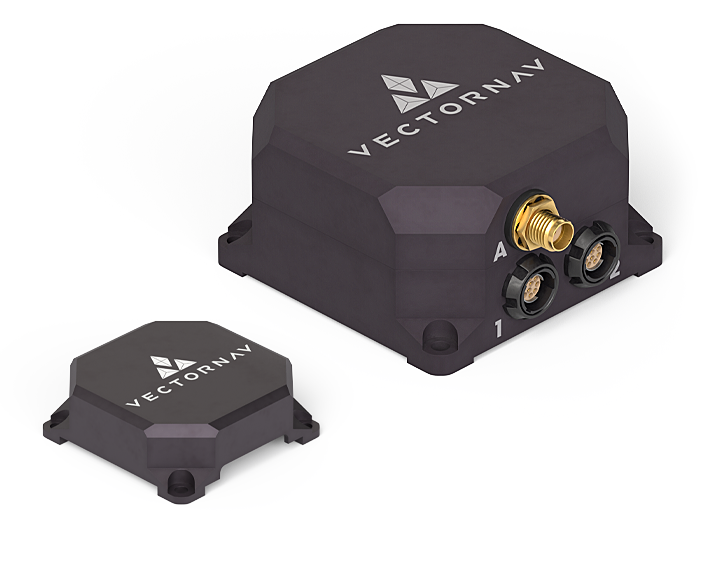

VectorNav’s Tactical Series features auxiliary ports to connect to external Inertial Measurement Units and SAASM or M-Code GPS receivers. The extended capabilities of the Tactical Series enable users to take advantage of VectorNav’s superior navigation algorithms while incorporating other technologies to enhance capabilities, security and performance in contested environments.

Additional capabilities enabled by external IMUs and SAASM or M-Code receivers are:

  • Gyrocompassing
  • GPS Denied Navigation
  • Anti-Jam/Anti-Spoof
  • Assured PNT

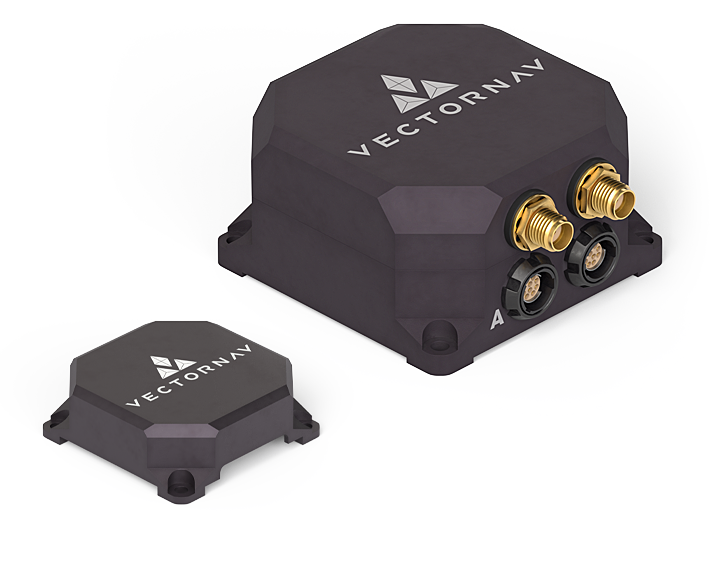

VN-310 & VN-310E-New

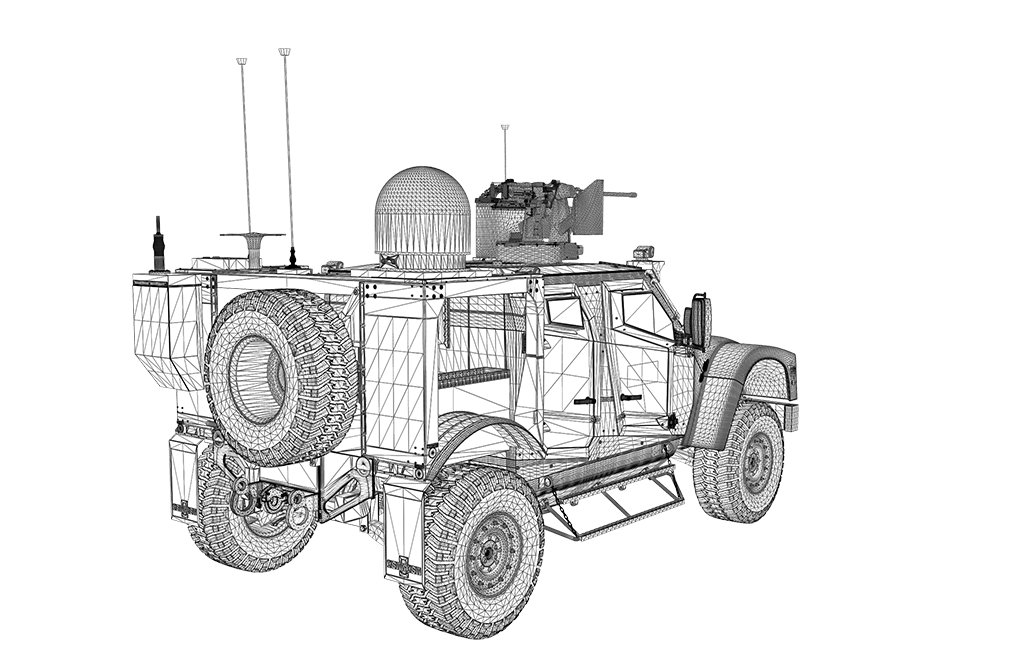

SATCOM on the Move

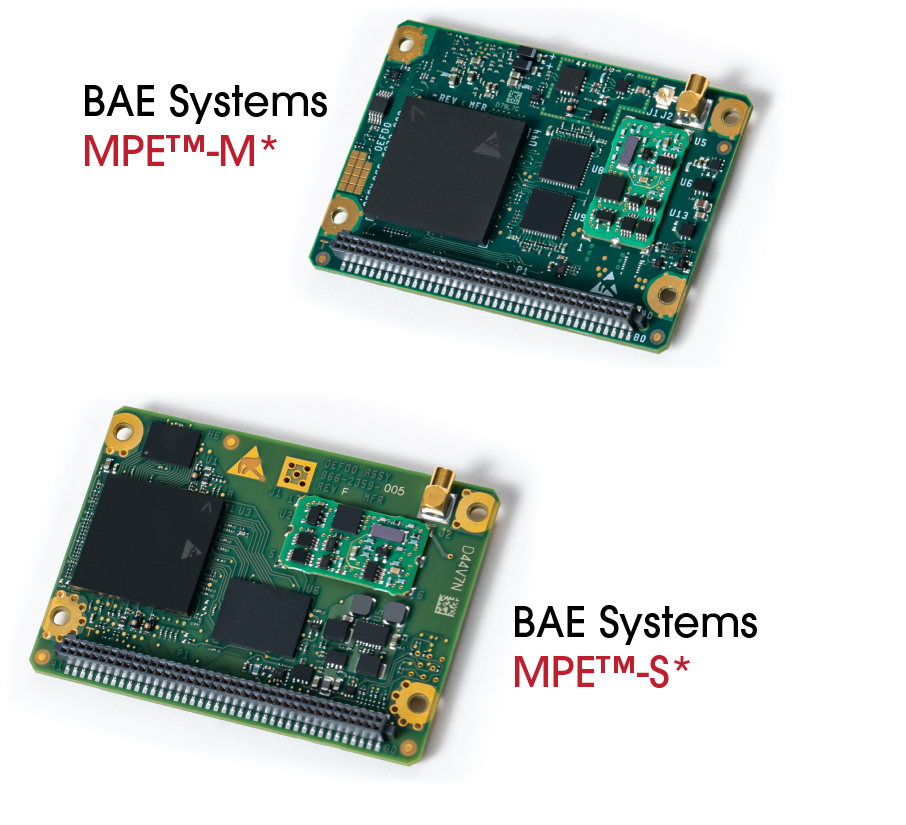

EXTERNAL SAASM OR M-CODE RECEIVER SUPPORT

Applications that require precise positioning when operating in contested environments require the latest developments in modernized GPS with anti-jamming/anti-spoofing capabilities and increased security. Legacy SAASM (Selective Availability Anit-Spoofing Module) GPS receivers are being updated to M-Code receivers that feature greater anti-jamming and security. VectorNav’s Tactical Series supports any GPS/GNSS receiver that is configured to output GPS-ICD-153 protocol. Simple connection of power, ground, serial communication lines and 1PPS to the auxiliary port on the Tactical Series device will enable the sensor to utilize the external PVT data for its INS solution.

Download the Extended Capabilities Borchure

EXTERNAL IMU SUPPORT

VectorNav Tactical Series currently supports three external IMUs. The table below provides a brief summary of their specifications.



IMU SPECIFICATIONS

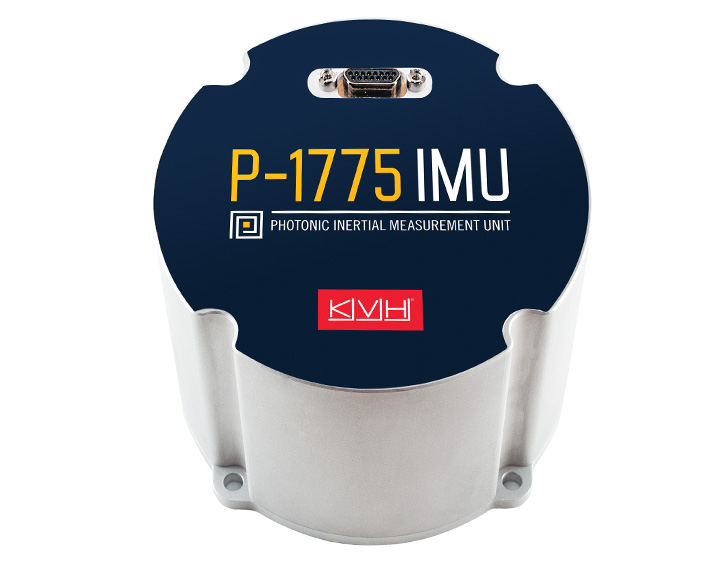

KVH 1775

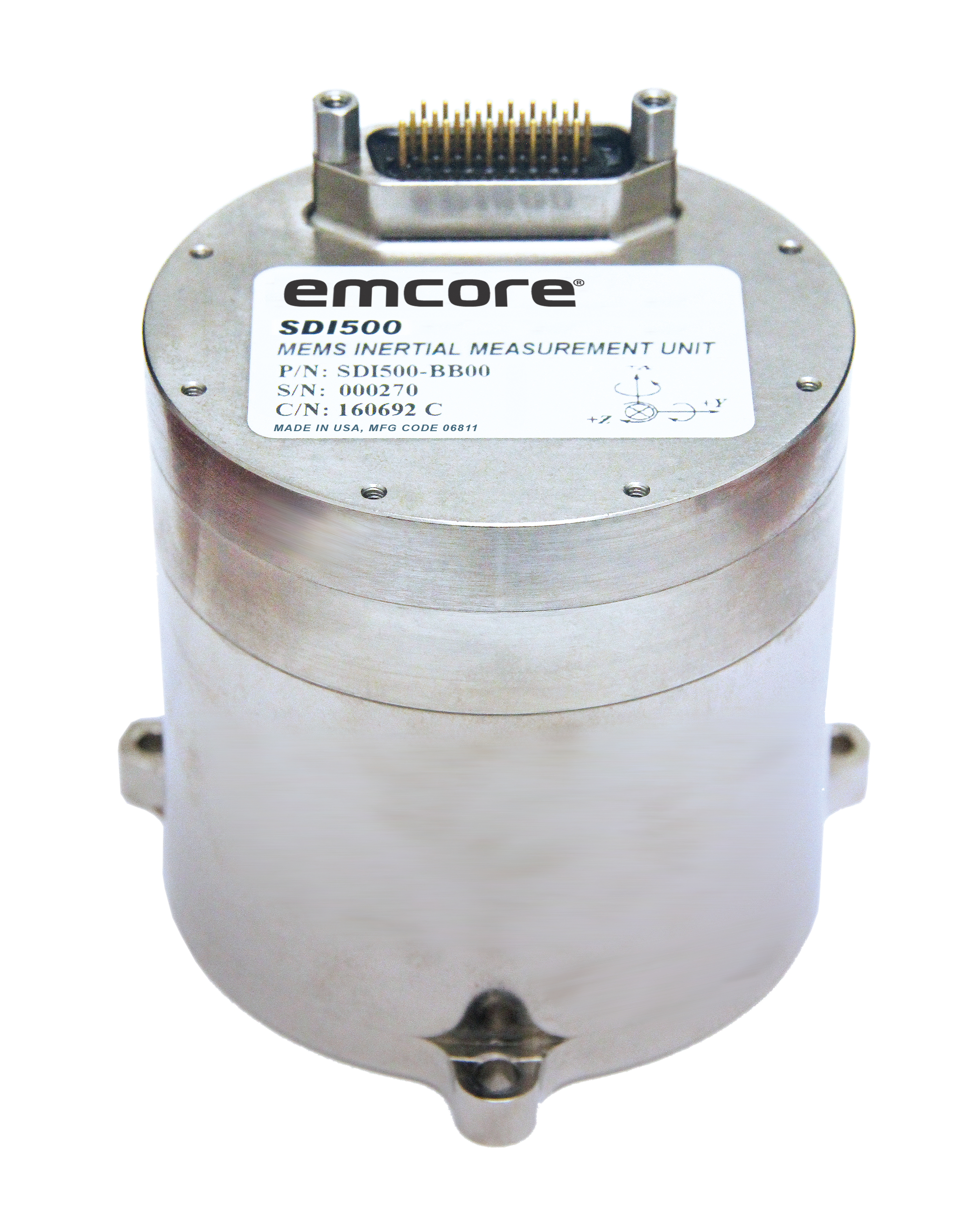

EMCORE/SYSTRON
DONNER SDI500

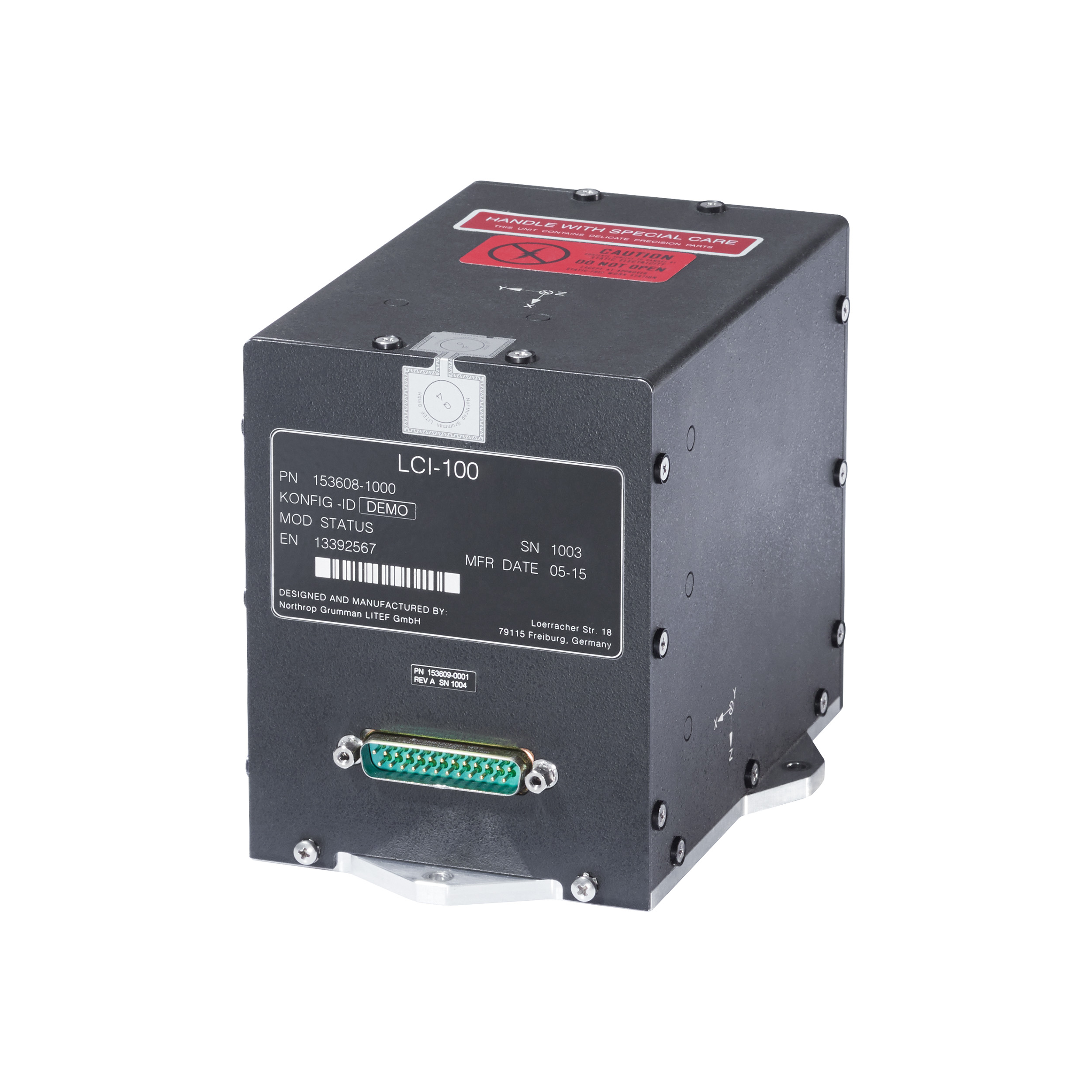

NORTHROP GRUMMAN
LITEF LCI-100
GYRO

Range±490 °/s±1,000 °/s±610 °/s
In-Run Bias0.5 °/hr, 1σ1.0 °/hr, 1σ0.05 °/hr, 1σ
Noise Density (ARW)0.012 °/√hr0.02 °/√hr≤ 0.012 °/√hr
Scale Factor Error (Non-Linearity)50 ppm200 ppm≤ 100 ppm

ACCELEROMETER

Range±30 g± 50 g± 20 g
In-Run Bias45 μg, 1σ100 μg, 1σ≤ 100 μg, 1σ
Accel Noise Density (VRW)102 μg/√Hz≤ 100 μg /√Hz≤ 100 μg /√Hz
Scale Factor Error (Non-Linearity)300 ppm200 ppm≤ 100 μg

ATTITUDE PERFORMANCE

Heading (Static, Gyrocompass)--0.35° sec-lat
Heading (Dynamic, INS)0.05°-0.1°, 1σ0.03°, 1σ0.015°, 1σ
Pitch/Roll (Static)0.5° RMS0.05°, 1σ0.02°, 1σ
Pitch/Roll (Dynamic, INS)0.015°, 1σ0.01°, 1σ0.01°, 1σ



Contact Us for more information on extended capabilities

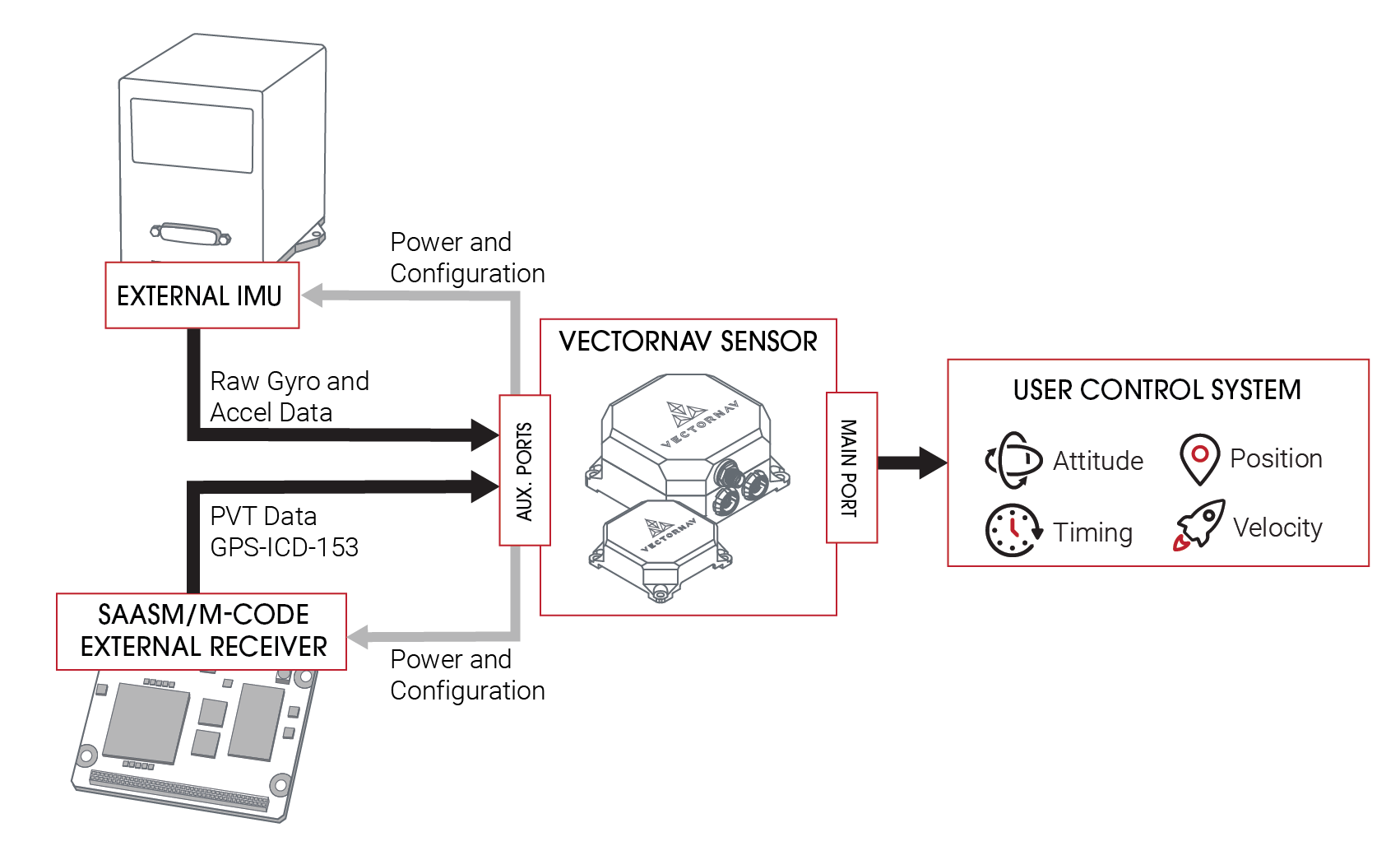

CONNECTING EXTERNAL DEVICES

Connecting external IMUs or SAASM/M-Code GPS receivers to the VectorNav sensor’s auxiliary port enables users to retaining existing drivers and interfaces  to the sensor’s main port. Simple configuration of the VectorNav sensor to accept external IMUs or GPS receivers can be done using VectorNav’s Control Center GUI. This enables users to seamlessly increase operational performance  and capabilities of their inertial solution. Please contact VectorNav support (support@vectornav.com) for information regarding cable purchase.


Learn more about VectorNav Products

VectorNav's sensor range includes IMUs, GNSS/INS and Dual GNSS/INS in both Industrial and Tactical performance grades. Click the link below to learn more about our products.
